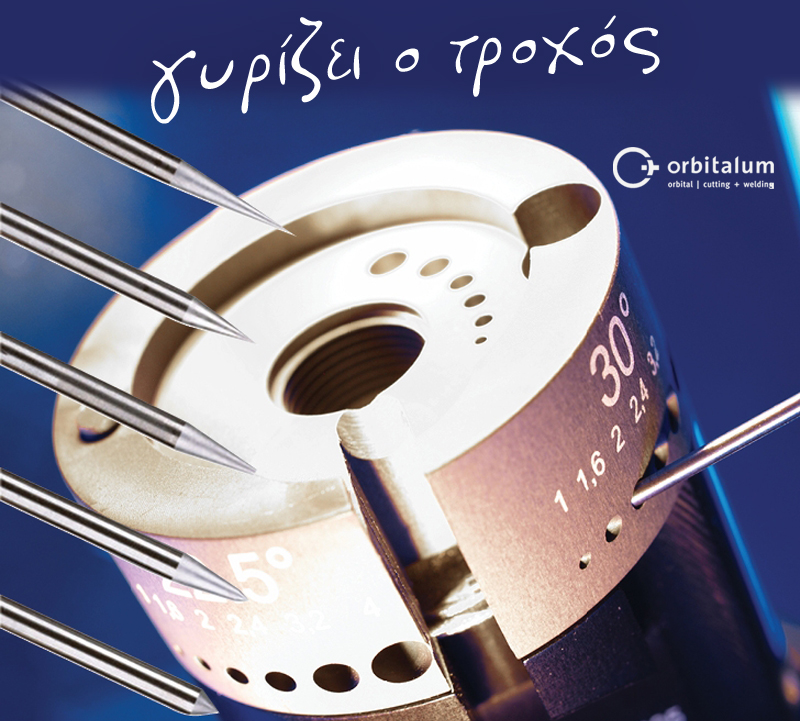

Tungsten Grinder
• Repeatable points every time due to preset grinding angles
• Easy and fast to use
• Optimum preparation for orbital and manual welding
• Longitudinal grinding for optimum arc ignition and excellent arc stability
• Guarantees longer tool life and ease of ignition of the tungsten electrode
• Specially designed for one-off jobs on site
• Compact design, optimum resilience and perfect reproducibility
• Solid, functional design
• Precise orbital grinding
• Grinding angles 15° / 18° / 22,5° / 30° or 15° / 30° / 45° / 60°
• Facility for easy trimming of the electrodes (optional)
• External dust extractor can be easily adapted
• Short preparation times with high grinding performance
• No adjustment needs to be done before operation
Tungsten Grinder ESG Plus
One machine – complete electrode preparation!
ESG Plus
This ESG Plus is the perfect hand-held grinder for cutting, grinding and planing
electrodes which are used in WIG/TIG welding machines. Consider country-specific
regulations, standards and guidelines when using tungsten electrodes with thorium.
Machine comes with:
• 1 Tungsten Grinder ESG Plus
• 1 Durable storage and shipping case
• ESG Plus: 1 Diamond grinding wheel (medium, Code 790 052 488)
• 1 Tool to replace the grinding wheel
• 1 Set of operating instructions and spare parts list
| Application range | ESG Plus, ESG Plus2 |
| Electrode Ø | 1.0 / 1.6 / 2.0 / 2.4 / 3.2 / 4.0 mm |
| 0.040 / 1/16 / 0.080 / 3/32 / 1/8 / 5/32 inch | |
| Grinding angles | 15° / 18° / 22.5° / 30° or 15° / 30° / 45° / 60° |
| Technical data Electric drive with single-phase AC motor | |
| Dimensions (with drive) | Ø 65 x 350 mm / 2.56 x 13.78 inch |
| Power | 500 W |
| Power-on time | 100% |
| Rotary speed | 30,000 rpm |
| Main supply cable (length) | 3 m / 118.1 inch |
| Vibration level in accordance with 28662, part 1 < | 2.5 m/s2 |
| Noise level at the workplace | Idle running approx. 83 dB (A) |
